Color Venous Duplex Ultrasound of the Lower Extremity in the Diagnosis of Deep Venous Thrombosis


Inherited causes of thrombophilia

Factor V Leiden mutation

Prothrombin gene mutation

Protein S deficiency

Protein C deficiency

Antithrombin deficiency

Dysfibrinogenemia

Plasminogen deficiency

Acquired blood disorders

Heparin-induced thrombocytopenia

Hyperhomocysteinemia

Myeloproliferative disorders

Elevated coagulation factor levels

Polycythemia rubra vera


Modified from www.​uptodate.​com; 2016




Risk Factors for VTE

Increasing age

Immobility, paralysis

Previous DVT

Malignant disease

Surgery

Trauma

Obesity

Pregnancy

Estrogen therapy

Nephrotic syndrome

Heart failure

Indwelling venous catheters



Venous Duplex Scanning


Prior to the development of ultrasound scanners, contrast venography was considered the “gold standard” for the diagnosis of lower extremity DVT . Currently, venous duplex scanning is considered the gold standard, and contrast venography is reserved for special circumstances such as when an endovascular intervention is planned, either for venous thrombolysis or recanalization with stenting [2, 1216]. Other invasive techniques include CT and MR venography which are indicated in the evaluation of abdominal and pelvic veins or lower extremity vascular malformations. The other noninvasive techniques are described in Chap. 39 (Table 40.2).


Table 40.2
Comparison of diagnostic modalities for lower extremity DVT




































Test

Accuracy

Limitations

Venous duplex

Sens: 93–100%

Spec: 97–100%

Operator dependent, experience

Contrast venography

Sens: 100%

Spec: 100%

Up to 15% indeterminate, invasive

IPG

Sens: 73–96%

Spec: 83–95%

Inaccurate if nonocclusive thrombus

CT venography

Sens: 93–100%

Invasive

MR venography

Sens: 87–100%

Spec: 95–100%

Cost

Nuclear scintigraphy

Sens: 21–83%

Spec: 54–97%

Invasive


Indications


The symptoms and signs of acute lower extremity DVT are nonspecific. The most common indications include localized pain, swelling or redness in the calf or thigh, and calf pain with passive dorsiflexion (Homans’ sign) [2, 1416]. In order to decrease the probability of a negative test, many physicians obtain a D-dimer level [17]. D-dimer is a fibrin degradation product released in the circulation when fibrinolysis starts on a formed blood clot. The value of D-dimer testing is when it is negative, meaning that it is unlikely that a blood clot is present. A positive D-dimer is present in many conditions, including trauma, pregnancy, inflammatory conditions, and recent surgery [1720]. The Wells clinical score uses a point system to assess the probability of a DVT (Table 40.3).


Table 40.3
Wells scoring





































Clinical characteristic

Point

Malignancy

1

Paralysis, paresis, cast

1

Recently bedridden for 3 days or more

1

Localized tenderness along course of a deep vein

1

Entire leg swollen

1

Calf swelling, 3 cm or increased circumference

1

Pitting edema in the symptomatic leg

1

Collateral superficial veins on symptomatic leg

1

Alternative diagnosis at least as likely as DVT

−2


Probability: High >3 points; Intermediate 1–2 points; Low 0 points


Instrumentation


Venous duplex scanning of the lower extremity can be performed with several transducers. In a normal adult of average body weight, a 5–10 MHz linear transducer is selected. In a larger or morbidly obese individual, a 3–5 MHz curved transducer will be required to image a deeper plane [11, 14]. In a complete lower extremity venous duplex examination, all three functions are utilized, B-mode, Doppler flow, and color flow.


Technique


Since most ultrasound equipment is portable, venous duplex scanning can be performed in the vascular lab or at the bedside in the Emergency Department or Intensive Care Unit. The patient is positioned supine, and ideally the bed can be tilted for a reverse Trendelenburg or modified Fowler position. When possible, the thigh and calf are slightly externally rotated. To image the abdominal veins, patients should be fasting for 6 h prior to the exam.

The exam starts by placing the probe in the groin area. Examination of the deep veins, the femoral and common femoral veins, is performed in both the transverse and longitudinal views [11, 13, 16]. The great saphenous vein is imaged as it enters the saphenofemoral junction (Fig. 40.1). With each venous segment identified, gentle compression is exerted to see if the vein walls collapse (Fig. 40.2). This maneuver should be done every 3–5 cm along the length of the medial thigh and popliteal fossa. In addition to compression, Doppler flow is documented by placing the cursor in the middle of the flow channel in longitudinal view. Here, the examiner is observing for spontaneous and phasic flow, as well as the presence of distal augmentation that normally occurs when the calf is gently squeezed (Fig. 40.3). Color flow is also documented in each segment. For the popliteal vein, the probe is positioned behind the knee and requires that the patient cooperates (Fig. 40.4). All segments of this vein should be thoroughly examined, above, at, and below the knee, with compression, Doppler, and color flow as previously described.



Fig. 40.1
Saphenofemoral junction showing thrombus by B-mode and near absence of color flow




Fig. 40.2
Acute DVT of the popliteal vein with hyperechoic material filling and distending the vein. The popliteal artery is adjacent showing normal echodensity of flowing blood




Fig. 40.3
Normal color flow and biphasic Doppler flow in a patent right common femoral vein

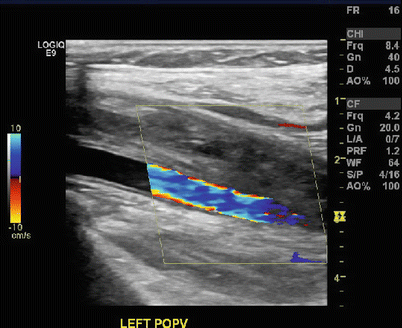

Fig. 40.4
Acute DVT in the popliteal vein , normal arterial flow in the popliteal artery

Next, the tibioperoneal trunk and posterior tibial and peroneal veins are examined (Fig. 40.5). Imaging starts at the ankle and proceeds cephalad. The probe is aimed in a posteromedial plane. It is most helpful, but not necessary, if the patient is able to sit dangling the legs. After compression is demonstrated, Doppler and color flow are documented in the often paired posterior and peroneal veins. The anterior tibial veins can be imaged from an anterolateral plane. In the absence of trauma or fractures, the likelihood of an anterior tibial DVT is less than 1%, and therefore, it is not included in the routine lower extremity exam.
